♦ 860-960MHz UHF RFID Cards
UHF Pre-Printed Cards

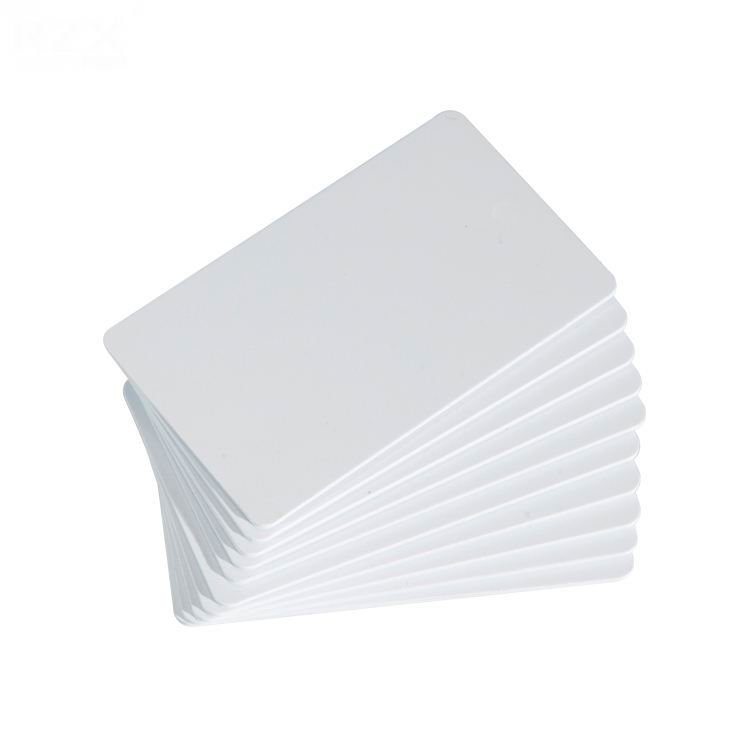

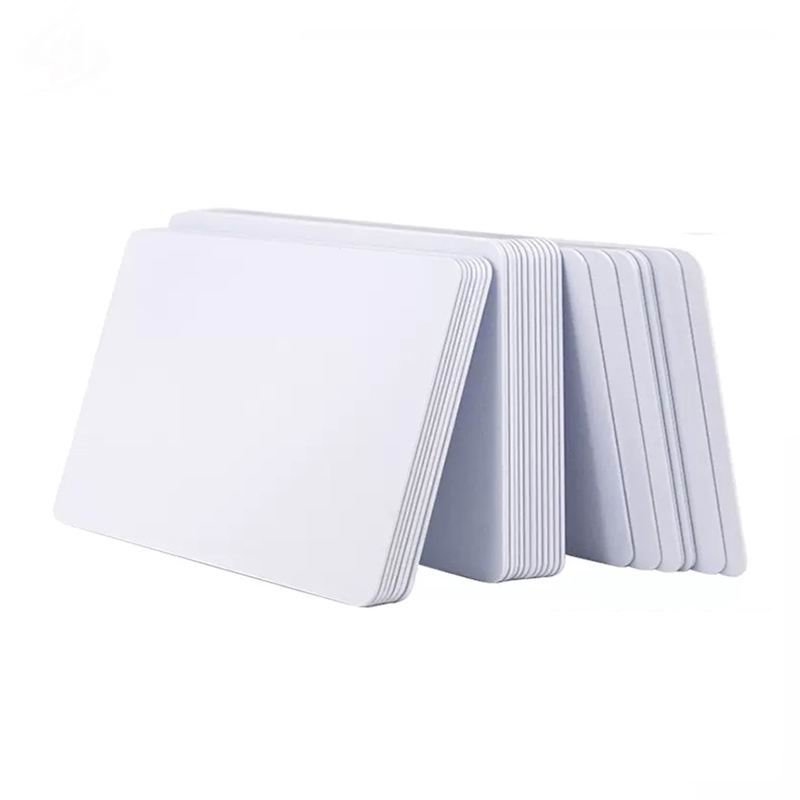

Contactless Card:
Contactless cards use radio frequency (RF) technology to interact with a reader. Each contactless card has a chip of low frequency 125KHz, high frequency 13.56MHz, or ultra-high frequency 860~960MHz and an antenna embedded inside the card that enables the communication with RFID reader without physical contact.
Popular applications are not limited to but include public transport for fare payment, access control, cashless vending, parking, loyalty, electronic purse, gambling, road toll, student, employee IDs in government and corporate environments, e-passports and other secure travel documents, and cards for cashless payment.
Cards Features:
Material: PVC, PET, PC, PETG
Surface: Glossy or matte
Color: White or Pre-printed
Size: 85.5x54x0.80mm + 0.04mm
Frequency: 125KHz ,13.56Khz,860-960Mhz
Working temp.: -25º C to 50º C
Storage temp.: -25º C to 50º C
Weight per card: 6 grams
Package: 200pcs/box
Customizations
Print: offset, silkscreen
Serial number printing: thermal or inkjet format
Signature panel, Scratch off, Hologram, Laser film lMagnetic stripe: LoCo 300 Oe, HiCo 2750 Oe or 4000 Oe
Embossing, Hot-stamping, Hole punching lEncoding, UV printing, Color photo printing
LF-125KHz chips ( portion)
| Ics | Supplier | Frequency | Memory size | RF Standard | Info |
| EM4100/4102 | EM | 125KHz | 64 bit R/O | / | Details |
| EM4450/4550 | EM | 125KHz | 1K bit R/W | / | Details |
| ATMEL5557/5567 | ATMEL | 125KHz | 330 bit R/W | / | Details |
| Hitag 1 | NXP | 125KHz | 2048 bit R/W | / | Details |
| Hitag 2 | NXP | 125KHz | 256 bit R/W | / | Details |
| Hitag S | NXP | 125KHz | 32/256/2048 Bit R/W | / | Details |
| More ICs | EM4105,EM4200,EM4205,EM4305,ATMEL5577… | ||||
HF-13.56MHz chips ( portion)
| Ics | Supplier | Frequency | Memory size | RF Standard | Info |
| Mifare 1K S50 | NXP | 13.56MHz | 1K Byte R/W | ISO 14443A | Details |
| Mifare 4K S70 | NXP | 13.56MHz | 4K Byte R/W | ISO 14443A | Details |
| Mifare Ultralight | NXP | 13.56MHz | 512 bit R/W | ISO 14443A | Details |
| Mifare DESFire | NXP | 13.56MHz | 4K/8K Byte R/W | ISO 14443A | Details |
| I CODE SLI | NXP | 13.56MHz | 1024bit R/W | ISO15693/ISO18000-3 | Details |
| TI2048 | TI | 13.56MHz | 2048 bit R/W | ISO15693/ISO18000-3 | Details |
| Legic MIM 256/1024 | LEGIC | 13.56MHz | 256/1K Byte R/W | Legic RF Standard | Details |
UHF-800+MHz ( portion)
| Ics | Supplier | Frequency | Memory size | RF Standard | Info |
| UCODE HSL | NXP | UHF/2.45GHz | 2K bit R/W | IS0 18000 | Detials |
| UCODE EPC G2 | NXP | 860~960MHz | 512 bit R/W | EPC Class 1 Gen2 | Detials |
| UCODE G2XL | NXP | 860~960MHz | 368 bit R/W | EPC Class 1 Gen2 | Details |
| UCODE G2XM | NXP | 860~960MHz | 880 bit R/W | EPC Class 1 Gen2 | Details |
More ICs: Alien H2, Alien H3, Impinj M2, Impinj M3…
