RFID Prelams/Inlays

125KHz LF Prelams /Inlays

INQUIRY

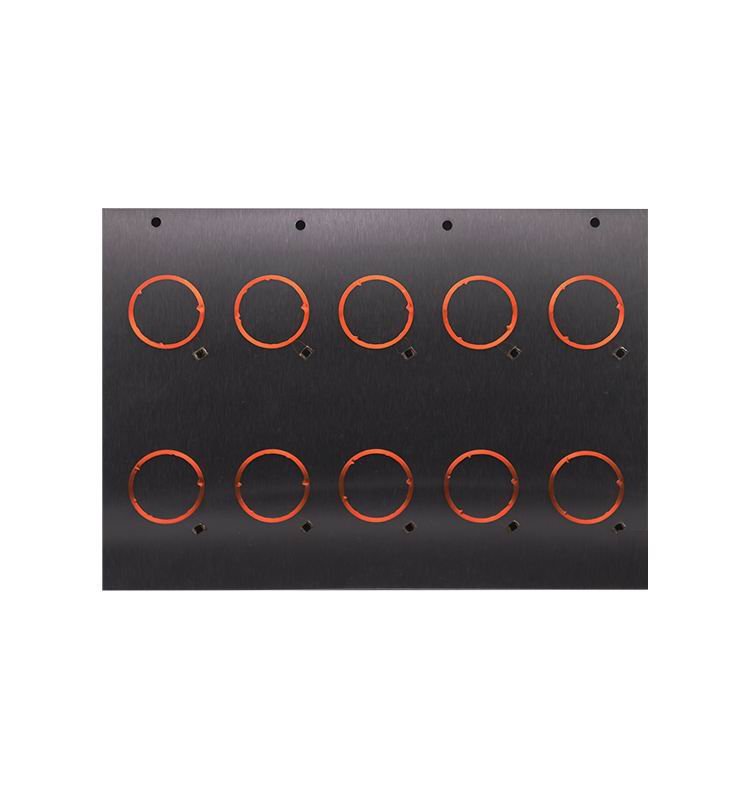

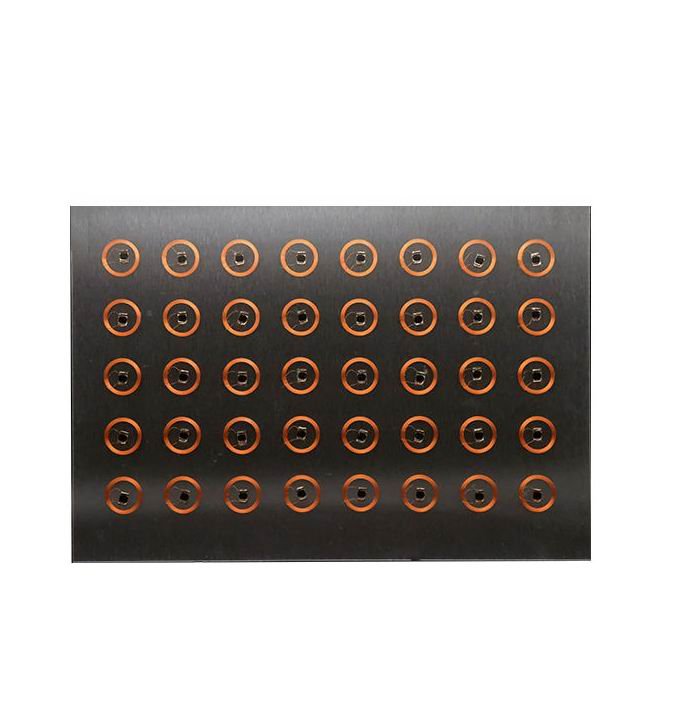

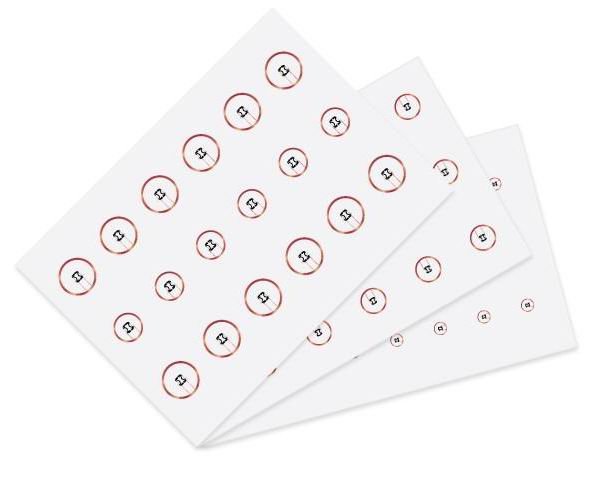

125KHz LF Prelams/Inlays for cards

RFID prelam card inlay is half-finished product. As the most important part means the core part for ISO RFID card. All the prelam sheets are durability and optimized read/write performance , they are all packaged cleanly from dust. RFID prelaminated inlays (prelams) are suitable for use in production of ISO standard cards.

Special Features	Waterproof / Weatherproof.
Communication Interface	RFID
Material Options	PVC, Transparent PVC, PET,PETG,ABS etc.
Chip	EM4102,EM4200,TK4100,T5577, etc.
Operating Frequency	125KHz/13.56MHz/860-960MHz
Thickness	0.3mm,0.32mm,0.35mm,0.4mm,0.42mm,0.45mm,0.5……
Specification	2×5, 3×6,3×7,3×8,4×5,4×6,4×7,4×8,4×9,4×10,5×5 or customized
Protocols	ISO14443A, ISO15693, ISO11784/85, ISO18000-6C/EPC C1 etc
Antenna	Copper Antenna
Dimension	310468mm, 520420mm, 210*297mm, etc.
Working Temperature	-25℃ to +55℃
Surface	Matte, Glossy, Frosted
Application	Card producing
Lead time	5-7 working days

As a leading smart card prelams/ inlays manufacturer, we produce and provide RFID prelams & inlays with the following features :

1. Manufacturer and factory price

2. Multiple layouts available.

3. Multiple chips available.

4. Multiple chips combination available.

5. Smoothy surface and customized thickness.

6. High quality and fast delivery.

LF-125KHz chips

Ics	Supplier	Frequency	Memory size	RF Standard	Info
EM4100/4102 EM4200	EM EM	125KHz 125KHz	64 bit R/O 128 bit R/O	/ /	Details Details
EM4450/4550	EM	125KHz	1K bit R/W	/	Details
ATMEL5567/5577	ATMEL	125KHz	363 bit R/W	/	Details
Hitag 1	NXP	125KHz	2048 bit R/W	/	Details
Hitag 2	NXP	125KHz	256 bit R/W	/	Details
Hitag S	NXP	125KHz	32/256/2048 Bit R/W	/	Details
More ICs		EM4105,EM4200,EM4205,EM4305,ATMEL5577…
