RFID Prelams/Inlays

13.56MHz HF Prelams/Inlays

INQUIRY

13.56MHz HF Prelams/Inlays for cards

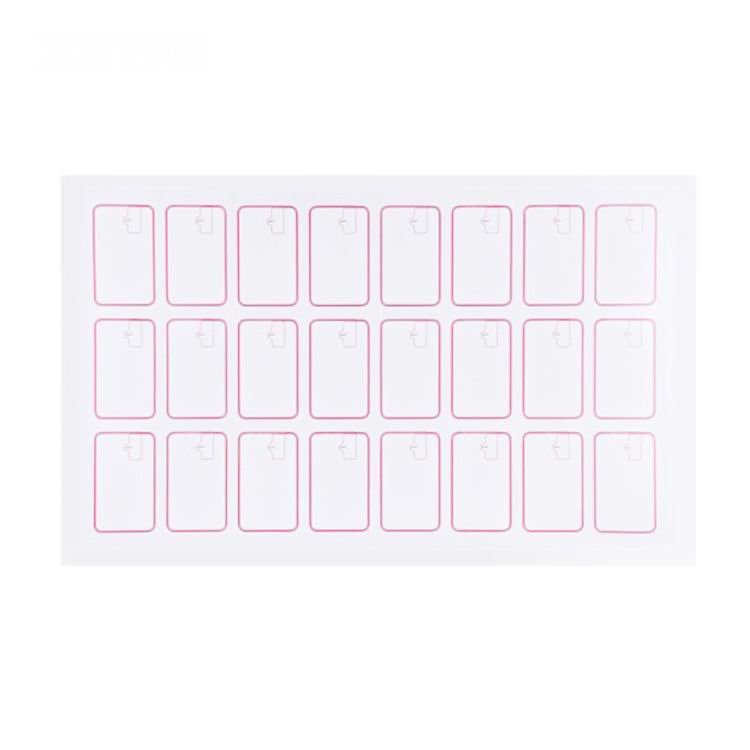

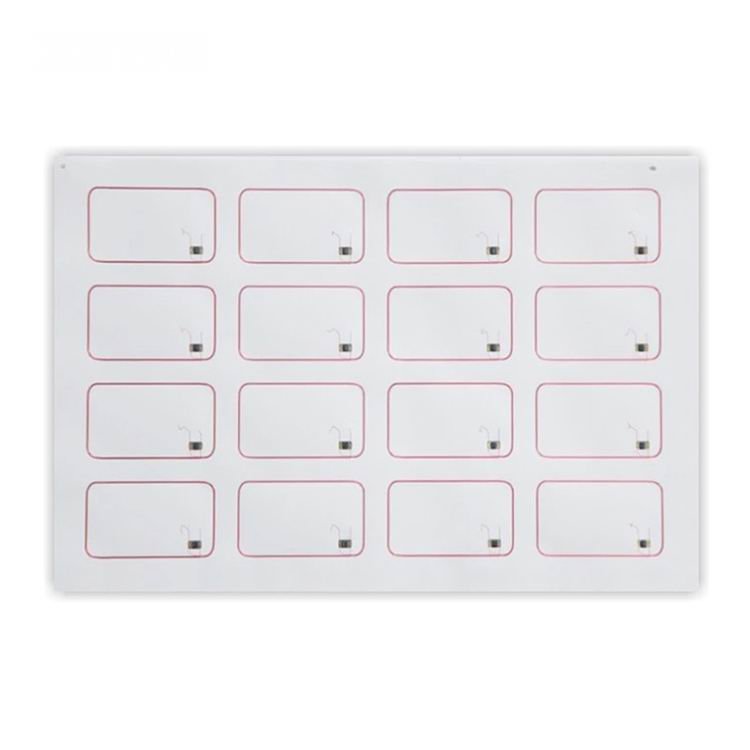

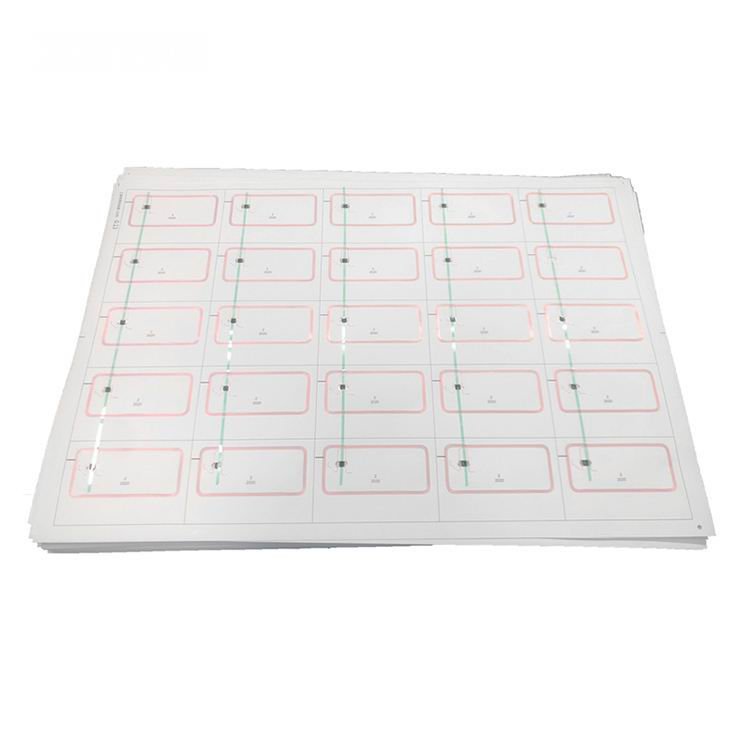

RFID prelam card inlay is half-finished product. As the most important part means the core part for ISO RFID card. All the prelam sheets are durability and optimized read/write performance , they are all packaged cleanly from dust. RFID prelaminated inlays (prelams) are suitable for use in production of ISO standard cards.

Special Features	Waterproof / Weatherproof.
Communication Interface	RFID
Material Options	PVC, Transparent PVC, PET,PETG,ABS etc.
Chip	Mifare S50,Mifare S70,Mifare Desfire,Mifare Ul,etc.
Operating Frequency	125KHz/13.56MHz/860-960MHz
Thickness	0.3mm,0.32mm,0.35mm,0.4mm,0.42mm,0.45mm,0.5……
Specification	2×5, 3×6,3×7,3×8,4×5,4×6,4×7,4×8,4×9,4×10,5×5 or customized
Protocols	ISO14443A, ISO15693, ISO11784/85, ISO18000-6C/EPC C1 etc.
Antenna	Copper Antenna
Dimension	310468mm, 520420mm, 210*297mm, etc.
Working Temperature	-25℃ to +55℃
Surface	Matte, Glossy, Frosted
Application	Card producing
Lead time	5-7 working days

As a leading smart card prelams/ inlays manufacturer, we produce and provide RFID prelams & inlays with the following features :

1. Manufacturer and factory price

2. Multiple layouts available.

3. Multiple chips available.

4. Multiple chips combination available.

5. Smoothy surface and customized thickness.

6. High quality and fast delivery.

HF 13.56 MHz Chips（portion）
Chip Name	Protocol	Capacity	Frequency
MIFARE Classic 1K	ISO14443A	1 KB	13.56 MHz
MIFARE Classic 4K	ISO14443A	4 KB	13.56 MHz
MIFARE Ultralight EV1	ISO14443A	80 byte	13.56 MHz
MIFARE Ultralight C	ISO14443A	192 byte	13.56 MHz
MIFARE Classic S50	ISO14443A	1K	13.56 MHz
MIFARE Classic S70	ISO14443A	4K	13.56 MHz
MIFARE DESFire	ISO14444A	2K/4K/8K bytes	13.56MHz
ICODE SLIX	ISO15693	1024 bits	13.56 MHz
ICODE SLI	ISO15693	1024bits	13.56 MHz
ICODE SLI-L	ISO15693	512bits	13.56 MHz
ICODE SLI-S	ISO15693	2048bit	13.56 MHz
I CODE SLIX2	ISO15693	USER 2528bits	13.56 MHz
NTAG210_212	ISO14443A	80/164bit	13.56 MHz
NTAG213F_216F	ISO14443A	180 bytes	13.56 MHz
NTAG213	ISO14443A	180 bytes	13.56 MHz
NTAG215	ISO14443A	540byte	13.56MHz
NTAG216	ISO14443A	180 or 924 bytes	13.56 MHz
NTAG213TT	ISO14443A	180 bytes	13.56 MHz
NTAG424 DNA TT	ISO14443A	416 bytes	13.56 MHz
NTAG203F	ISO14443A	168byte	13.56 MHz
