RFID Prelams/Inlays

860-960 MHz UHF Prelams/Inlays

INQUIRY

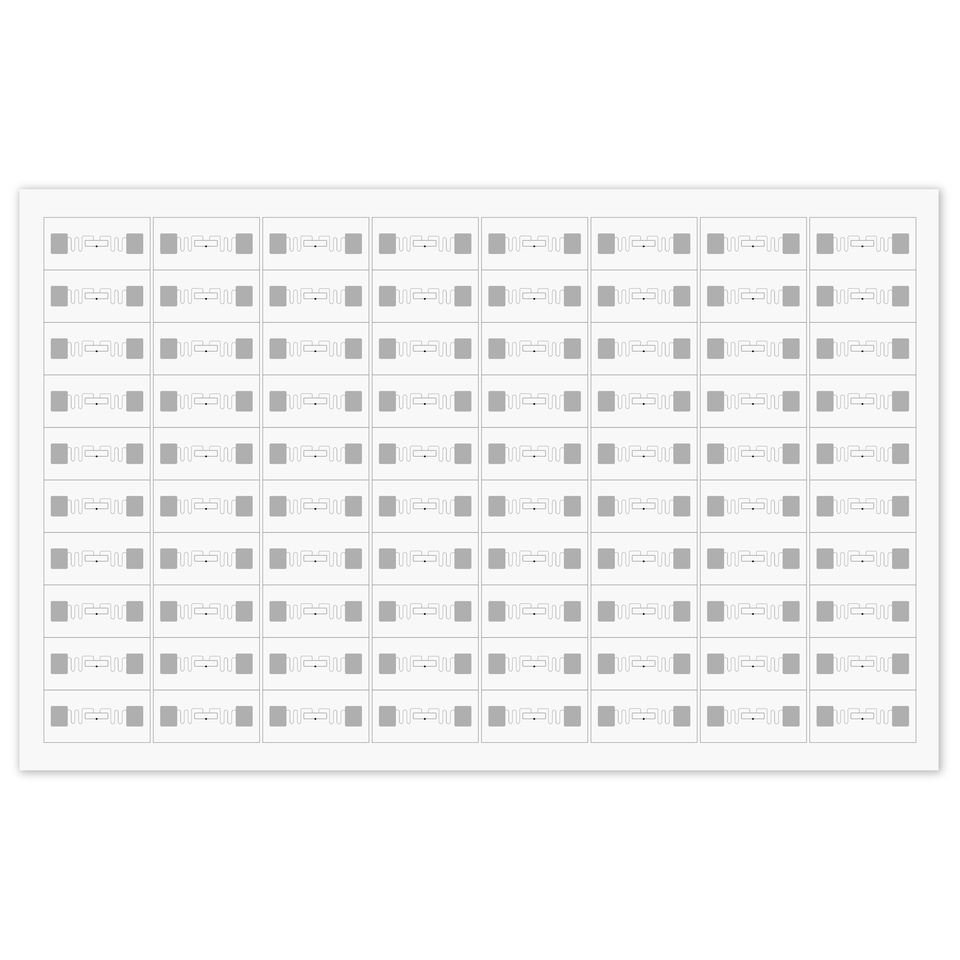

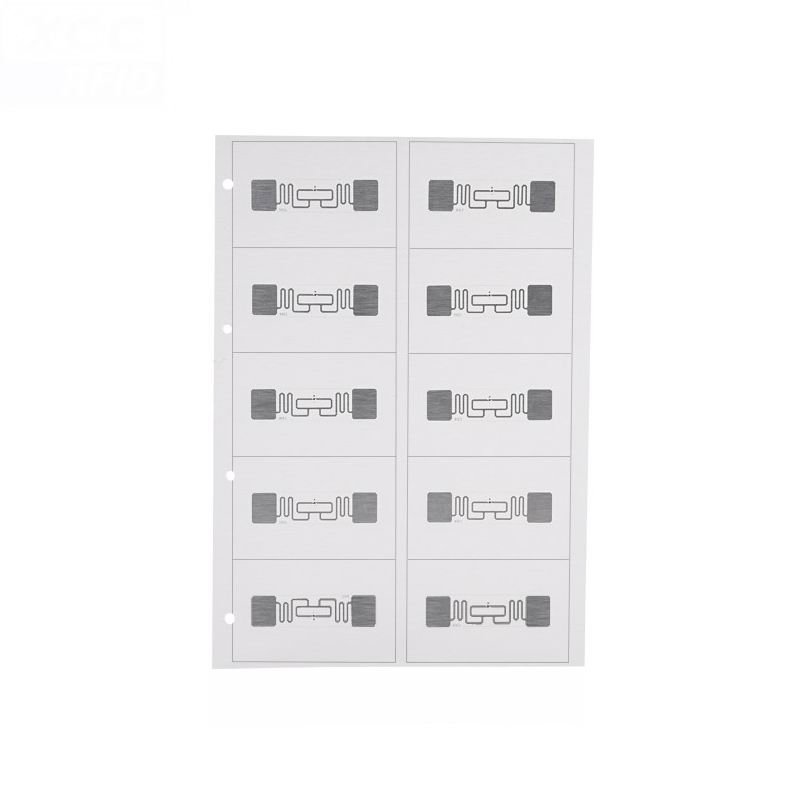

860-960 MHz UHF Prelams/Inlays for cards

RFID prelam card inlay is half-finished product. As the most important part means the core part for ISO RFID card. All the prelam sheets are durability and optimized read/write performance , they are all packaged cleanly from dust. RFID prelaminated inlays (prelams) are suitable for use in production of ISO standard cards.

Special Features	Waterproof / Weatherproof.
Communication Interface	RFID
Material Options	PVC, Transparent PVC, PET,PETG,ABS etc.
Chip	AlienH3 serias, Monza serias, Ucode EPC G2 serias
Operating Frequency	125KHz/13.56MHz/860-960MHz
Thickness	0.3mm,0.32mm,0.35mm,0.4mm,0.42mm,0.45mm,0.5……
Layout	2×5, 3×6,3×7,3×8,4×5,4×6,4×7,4×8,4×9,4×10,5×5 or customized
Protocols	ISO14443A, ISO15693, ISO11784/85, ISO18000-6C/EPC C1 etc.
Antenna	Copper Antenna
Dimension	310468mm, 520420mm, 210*297mm, etc.
Working Temperature	-25℃ to +55℃
Surface	Matte, Glossy, Frosted
Application	Card producing
Lead time	5-7 working days

As a leading smart card prelams/ inlays manufacturer, we produce and provide RFID prelams & inlays with the following features :

1. Manufacturer and factory price

2. Multiple layouts available.

3. Multiple chips available.

4. Multiple chips combination available.

5. Smoothy surface and customized thickness.

6. High quality and fast delivery.

860-960MHz Chips（portion）
Chip Name	Protocol	Capacity	Frequency
Alien H3（Higgs 3）	ISO18000-6C	EPC 96-496bits、User 512bits	860~960 MHz
Alien Higgs 4	ISO18000-6C	EPC 128bits、User 128bits	860~960 MHz
Impinj Monza 4	ISO18000-6C	96 bits	860~960 MHz
Ucode 7	ISO18000-6C	128bits	860~960 MHz
Ucode 8	ISO18000-6C	EPC 128bits	860~960 MHz
Ucode 8m	ISO18000-6C	EPC 96bits、User 32Bit	860~960 MHz
Ucode 9	ISO18000-6C	EPC 96bits、User 32Bits	860~960 MHz
UCODE G2iL	ISO18000-6C	128 bits	860~960 MHz
U Code DNA	ISO18000-6C	EPC 128bits、User 3072Bits	860~960 MHz
U Code HSL	ISO18000-6C	UID 8Bytes 、User 216Bytes	860~960 MHz
Monza 4D	ISO18000-6C	EPC 128bits、User 32bits	860~960 MHz
Monza 4QT	ISO18000-6C	512bits	860~960 MHz
Monza R6	ISO18000-6C	96bits	860~960 MHz
Monza R6-P	ISO18000-6C	32bits	860~960 MHz
EM4124	ISO18000-6C	96bits	860~960 MHz
EM4126	ISO18000-6C	208bit	860~960 MHz
ME4423	ISO18000-6C	User 160/64bits	860~960 MHz
